What Is Laser Welding and How Does it Work?

General Information

Laser welding is a high-precision joining process that uses a focused beam of light to melt and fuse materials together. It relies on concentrated energy density delivered by lasers, making it ideal for applications that demand clean, narrow welds with minimal thermal distortion. The core principle is simple—heat generated by the laser melts the base materials at the joint, allowing them to fuse as they cool.

This non-contact method enables pinpoint accuracy, making it suitable for joining small components in electronics or delicate medical devices. On the other hand, high-power systems can penetrate thicker metals, allowing for structural joins in automotive frames or aerospace assemblies. Whether handheld or fully automated, laser welding has become a cornerstone of advanced manufacturing.


Conduction vs. Keyhole Welding

Laser welding has two main styles, each with its own way of getting the job done. They differ in how the laser interacts with materials, the depth of the welds they create, and the situations where they work best. Understanding these two modes helps in picking the right one for a specific task, whether it’s joining thin pieces or creating strong, deep bonds. There are two primary laser welding modes:

  • Conduction Welding: The laser energy heats the surface, and heat conducts inward. It's suitable for shallow, aesthetically clean welds.

  • Keyhole Welding: At higher energy densities, the laser vaporizes material, creating a narrow, deep “keyhole” that allows deep penetration welds.

Keyhole welding is more aggressive and often used in heavy-duty applications. It can produce strong, deep welds with a minimal heat-affected zone (HAZ), while conduction mode is favored in electronics or thin-sheet welding, where surface appearance matters more than depth.


Welding of Dissimilar Metals

Welding dissimilar metals—like copper and aluminum—is notoriously difficult using traditional methods. Different melting points, thermal conductivities, and material behaviors often lead to weak bonds or cracking.

Laser welding solves this by:

  • Controlling heat input precisely

  • Minimizing mixing between metals

  • Using pulsed modes to mitigate thermal stress

This is critical in battery tab welding, where materials like nickel, copper, and aluminum must be joined cleanly and quickly without damaging the cells.


Adjustable Ring Modes

Adjustable ring modes are a clever feature in some fiber laser setups, letting users tweak how the laser beam’s energy spreads. This flexibility is a game-changer, as it lets the laser adapt to different materials and joint designs. By shaping the beam’s intensity, these modes make the welding process more versatile and reliable across various tasks.

Some fiber laser systems offer adjustable ring modes, where the intensity distribution of the beam is shaped to match the application.

Benefits include:

  • Improved fusion quality

  • Enhanced control over penetration depth

  • Minimized spatter and porosity

By tuning the core and ring beam ratio, manufacturers can reduce defects and improve tolerance across different material combinations or joint types.


When Was Laser Welding Invented?

Laser welding emerged in the 1960s, shortly after the invention of the laser itself in 1960 by Theodore Maiman. By the late 1970s, companies began experimenting with lasers for industrial welding.

Initially limited by low power and poor beam quality, early laser welding had niche uses. However, the development of CO₂ lasers and later fiber lasers revolutionized its application. By the 2000s, laser welding was integrated into automotive production lines, and today it plays a key role in electric vehicle battery production, aerospace, and medical device manufacturing.


What Types of Lasers Can Weld?

Not all lasers are made equal when it comes to welding. Different lasers have unique traits that make them suited for specific jobs. From power levels to wavelength, these differences determine which laser gets picked for a particular welding task. Knowing the types helps in understanding why certain lasers are chosen over others.

There are several types of lasers used in welding:


Laser Type

Key Features

Typical Use Cases

CO₂ Lasers

High power, long wavelength

Cutting, welding thick materials

Nd:YAG Lasers

Shorter wavelength, pulsed operation

Medical, precision welding

Fiber Lasers

High beam quality, compact, efficient

Automotive, electronics, battery tabs

Diode Lasers

Lower cost, high efficiency

Plastic welding, lightweight metals

Fiber lasers have become dominant due to their flexibility, low maintenance, and excellent beam quality.


What are the Advantages of Laser Welding?

Laser welding stands out from traditional methods for many reasons. These plus points make it a top choice in various industries where performance and efficiency matter. Exploring these advantages shows why it’s widely adopted in modern manufacturing.

Laser welding offers multiple benefits over traditional methods:

  • Speed: High welding rates due to concentrated energy.

  • Precision: Excellent for micro-scale or automated tasks.

  • Low distortion: Minimal HAZ reduces warping and stress.

  • Automation-friendly: Perfect for robotic arms and inline systems.

  • Clean process: No need for filler materials or excessive post-processing.

  • Material versatility: Handles aluminum, stainless steel, copper, titanium, and combinations.

These advantages translate to higher throughput, lower defect rates, and consistent quality—ideal for high-volume manufacturing.


What are the Disadvantages of Laser Welding?

While laser welding has many strengths, it’s not without drawbacks. These challenges can affect when and how it’s used, as they might make it less suitable for certain situations. Being aware of these downsides gives a balanced view of the process.

Despite its strengths, laser welding also comes with challenges:

  • High upfront cost: Machines can be expensive, especially fiber laser systems.

  • Setup complexity: Requires precise alignment and process control.

  • Reflective materials: Metals like copper reflect laser energy, requiring adjustments.

  • Safety concerns: Laser beams can be hazardous without proper shielding.

  • Gap sensitivity: Joints must be closely fitted to avoid poor fusion.

Still, many of these issues can be managed with automation, pre-processing, or hybrid methods.


Examples of Laser Welding Machines

Laser welding machines come in a wide range of designs, each tailored to specific tasks and industries. From compact tools for small-scale jobs to large robotic systems for mass production, their diversity lets them handle everything from tiny battery components to massive car frames. Understanding these examples shows how versatile laser welding technology can be.

Battery Welding Machine

These machines are optimized for welding battery cells, tabs, and module frames. They often feature:

  • Vision systems for alignment

  • High-speed scanning heads

  • Capability for copper-to-aluminum joining

Battery welding machines play a central role in EV and energy storage production lines.

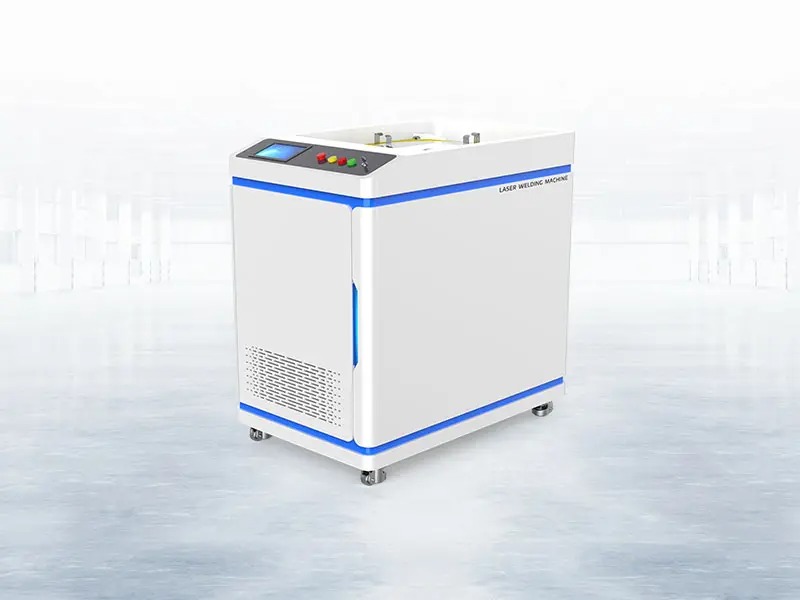

Handheld System

Handheld fiber laser welders are gaining popularity due to:

  • Portability and ease of use

  • Ability to weld stainless steel, carbon steel, and aluminum

  • Integrated cooling and wire feeders

They’re ideal for sheet metal fabrication, repair shops, and metal furniture production.


Robot Welding Machine (Remote Welding)

Robotic systems with laser heads are used for:

  • Complex geometries

  • Multi-axis movement

  • Fully automated welding cells

Remote laser welding enables non-contact welding over long distances, perfect for large body-in-white automotive assemblies.


Robot Welding of Car Frame

Modern car frames require hundreds of welds—many in hard-to-reach areas. Laser robotic systems offer:

  • Fast cycle times

  • Minimal distortion

  • Real-time process monitoring

This ensures safety, consistency, and structural strength while meeting production quotas.


Laser Welding


Laser Welding vs. Traditional Welding

Understanding how laser welding stacks up against traditional methods like TIG or MIG helps in choosing the right technique for a job. Each has its own set of strengths and weaknesses, shaped by how they generate heat, their precision levels, and how easy they are to scale. Comparing them side by side clarifies when to opt for lasers and when traditional methods might be more suitable.

How does laser welding compare with other methods like TIG or MIG?


Aspect

Laser Welding

Traditional Welding (MIG/TIG)

Heat Input

Very low

High

Precision

Extremely high

Moderate

Speed

Fast

Moderate to slow

Automation

Easily automated

Requires skilled operators

Weld Appearance

Clean, minimal spatter

May need grinding or cleanup

Material Versatility

High

Limited for dissimilar metals

In industries where tight tolerances and repeatability matter, laser welding outperforms traditional techniques. However, MIG/TIG still hold value in low-cost or thick-section applications.


Future Trends in Laser Welding

Laser welding isn’t standing still—it’s evolving rapidly to meet new industrial demands. From smarter systems to more eco-friendly processes, the future holds exciting advancements that will make this technology even more powerful and versatile. These trends are set to reshape how manufacturers approach welding, opening up new possibilities across various sectors.

The field of laser welding is evolving fast. Here’s what’s next:

  • AI and real-time control: Smart cameras and sensors adjust parameters on the fly for perfect welds every time.

  • Hybrid welding: Combining arc and laser for thick-section welds.

  • Miniaturization: Micro-welding for wearable devices, medical implants, and tiny electronics.

  • Green manufacturing: Lower energy consumption and cleaner emissions support sustainability.

  • 3D printing integration: Welding layers or post-processing additively manufactured components.

As more factories digitize, laser welding will become integral to Industry 4.0 strategies.


Conclusion

Laser welding is no longer just a niche solution for high-tech industries—it has become a foundational technique across automotive, aerospace, electronics, battery manufacturing, and precision medical tooling. Its ability to join complex geometries and dissimilar materials with minimal heat-affected zones makes it an indispensable part of smart manufacturing.

Companies around the world are investing in laser welding not only for its speed and cleanliness, but also for its role in reducing defects, improving product consistency, and enabling real-time quality control. As labor shortages and cost pressures grow, automation-ready processes like laser welding offer a competitive edge.

With the advent of fiber lasers, AI-driven alignment systems, and hybrid arc-laser processes, laser welding continues to evolve. It's safer, faster, and more adaptable than ever. Whether you're welding ultra-thin battery tabs or structural vehicle components, there's likely a laser solution built for your line.

If your operation demands high throughput, low maintenance, and reliable performance—even across different metals—then laser welding deserves a place in your production roadmap.


FAQ

Q: What is the main benefit of laser welding over TIG or MIG welding?

A: Laser welding is much faster, cleaner, and more precise. It’s better for automation and offers less thermal distortion.

Q: Can laser welding be used on thick metals?

A: Yes, especially with keyhole mode and high-power fiber lasers. However, joint design and prep are critical.

Q: Is laser welding safe for operators?

A: With proper shielding and eyewear, it’s safe. Most industrial systems include laser safety enclosures and interlocks.

Q: How much does a laser welding system typically cost?

A: Prices range from $10,000 for handheld units to over $500,000 for robotic laser welding cells.

Q: What certifications or standards apply to laser welding?

A: ISO 15614-11 (procedure qualification), ISO 13919 (weld quality), and ANSI Z136 (laser safety) are commonly referenced.
