Views: 2 Author: Site Editor Publish Time: 2025-06-05 Origin: Site
Have you ever wondered how those precisely bent metal parts in your car, the frame of your building, or the components in your HVAC system are made? Chances are, press brake bending played a crucial role in their creation. Press brake bending is a fundamental process in metal fabrication that allows us to transform flat sheets of metal into various shapes with remarkable precision. In this article, we'll take a deep dive into the world of press brake bending, exploring its basics, different types of press brakes, bending techniques, tooling, common mistakes, safety tips, and much more. Whether you're a seasoned fabricator, a machinist, an engineer, or a DIY metalworker looking to expand your knowledge, this guide is for you.

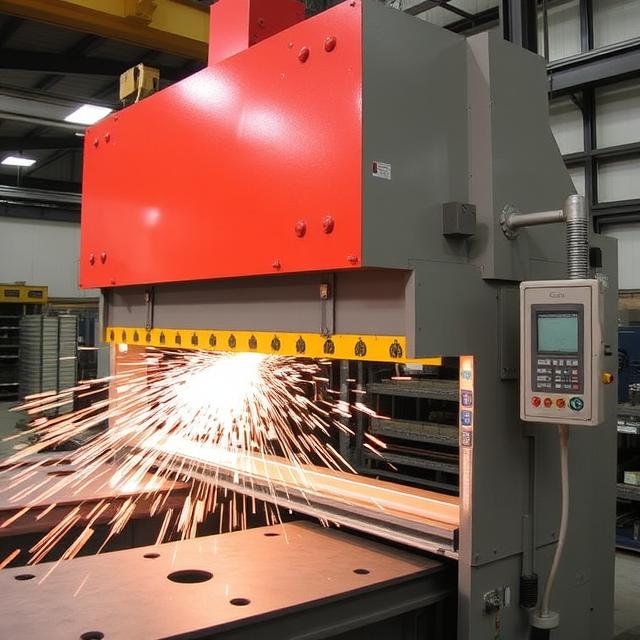

Press brake bending is a metal-forming process that utilizes a press brake machine to bend sheet metal into desired shapes. It's a versatile and widely used technique in the manufacturing industry, enabling the creation of everything from simple brackets to complex aerospace components. The process involves the use of a punch and a die, which work together to apply force to the metal sheet, causing it to bend at a specific angle.
Punch: The punch is the upper part of the tooling that descends onto the metal sheet. It comes in various shapes and sizes, depending on the type of bend required. For example, a V-shaped punch is commonly used for creating 90-degree bends, while a gooseneck punch is suitable for bending metal in tight spaces.
Die: The die is the lower part of the tooling that supports the metal sheet. It also has different shapes, with the V-die being the most common. The width of the V in the die determines the minimum bend radius that can be achieved. A smaller V-width allows for sharper bends, but it also requires more force.
Back Gauge: The back gauge is an essential component that helps position the metal sheet accurately for each bend. It ensures that the bends are consistent and in the correct location on the sheet. Manual back gauges are adjusted by hand, while CNC-controlled back gauges offer precise and automated positioning.
CNC Controls (if applicable): Computer Numerical Control (CNC) systems have revolutionized press brake bending. They allow for precise control of the bending process, including the position of the punch and die, the force applied, and the sequence of bends. CNC press brakes are highly accurate and can repeat complex bending operations with ease.
Press brake bending finds applications in a wide range of industries:
Automotive: In the automotive industry, press brake bending is used to create parts such as body panels, brackets, and chassis components. The ability to produce precise bends is crucial for ensuring a proper fit and structural integrity.
Aerospace: Aerospace components require the highest level of precision and quality. Press brake bending is used to manufacture parts like wing sections, fuselage panels, and engine components. The aerospace industry often uses advanced CNC press brakes to meet strict tolerances.
Construction: In construction, press brake bending is used to create metal components for buildings, such as beams, brackets, and decorative elements. The versatility of press brake bending allows for the production of custom shapes to meet the specific needs of each project.
HVAC: Heating, Ventilation, and Air Conditioning (HVAC) systems rely on press brake-bent parts for ductwork, vents, and brackets. The ability to bend sheet metal into complex shapes helps optimize the performance of HVAC systems.
The press brake bending process can be broken down into several steps:
Material Loading and Alignment: First, the metal sheet is loaded onto the press brake. It's crucial to align the sheet accurately with the back gauge to ensure consistent bends. This can be done manually or with the help of automated alignment systems.
Tool Selection: The appropriate punch and die are selected based on the material thickness, the desired bend radius, and the angle of the bend. As mentioned earlier, different shapes and sizes of punches and dies are available for various applications.
Applying Force to Create the Bend: Once the material is loaded and the tools are selected, the press brake is activated. The punch descends onto the metal sheet, applying force and causing it to bend into the shape of the die. The amount of force required depends on factors such as the material type, thickness, and the length of the bend.
Springback and Compensation: After the bend is made, the metal has a tendency to spring back slightly to its original shape. This is known as springback. To compensate for springback, fabricators often overbend the metal slightly or use techniques like coining, which we'll discuss in more detail later.
Role of CNC in Modern Press Brakes: In modern CNC press brakes, the entire process is automated. The operator programs the desired bend angles, radii, and other parameters into the CNC system. The machine then precisely controls the movement of the punch and die, ensuring accurate and repeatable bends. CNC press brakes also offer features like real-time monitoring and adjustment, which can improve the quality of the bends and reduce waste.
There are several types of press brakes, each with its own advantages and disadvantages. Let's take a closer look at them:
How they work: Hydraulic press brakes use hydraulic cylinders and oil pressure to generate the force required for bending. When the operator activates the press brake, oil is pumped into the cylinders, causing the ram (which holds the punch) to move downwards and apply force to the metal sheet.
Pros:
High force: Hydraulic press brakes can generate a significant amount of force, making them suitable for bending thick and hard materials.
Versatility: They can handle a wide range of materials and thicknesses, and the force can be easily adjusted to suit different bending requirements.
Smooth operation: The hydraulic system provides a smooth and consistent force application, resulting in high-quality bends.
Cons:
Slower than mechanical: Hydraulic press brakes tend to be slower in operation compared to mechanical press brakes. The process of pumping oil into the cylinders takes time, which can limit the production speed.
Maintenance needs: The hydraulic system requires regular maintenance to ensure proper functioning. This includes checking the oil level, filtering the oil, and inspecting the hydraulic cylinders for leaks.
Flywheel and clutch mechanism: Mechanical press brakes operate using a flywheel and clutch mechanism. The flywheel stores energy, and when the clutch is engaged, the energy is transferred to the ram, causing it to move and bend the metal.
Pros:
High speed: Mechanical press brakes are known for their high speed. The quick movement of the ram allows for rapid production, making them suitable for high-volume applications.
Durability: They are generally more durable than hydraulic press brakes, as they have fewer moving parts and no hydraulic fluid to leak or require maintenance.
Cons:
Less precision: Mechanical press brakes may not offer the same level of precision as hydraulic or CNC press brakes. The movement of the ram is more limited in terms of fine-tuning, which can result in less accurate bends.
Limited tonnage: They typically have a lower maximum tonnage capacity compared to hydraulic press brakes, making them less suitable for bending very thick or hard materials.
Computer-controlled precision: As mentioned earlier, CNC press brakes are controlled by a computer program. The operator enters the desired bending parameters, and the machine automatically adjusts the position of the punch, die, and back gauge to achieve the precise bend.
Pros:
Repeatability: CNC press brakes can repeat complex bending operations with extreme accuracy. This is crucial for mass production, where consistent quality is essential.
Complex bends: They can handle intricate and complex bend patterns that would be difficult or impossible to achieve with manual or mechanical press brakes.
Reduced human error: Since the process is automated, there is less room for human error. The machine follows the programmed instructions precisely, resulting in fewer mistakes and less scrap material.
Cons:
Higher cost: CNC press brakes are generally more expensive to purchase and maintain compared to other types of press brakes. The advanced technology and precision components contribute to the higher cost.
Requires skilled operators: Operating a CNC press brake requires a certain level of training and skill. The operator needs to be proficient in programming the machine and understanding the bending process to make the most of its capabilities.
Energy efficiency, quieter operation: Electric and servo-electric press brakes use electric motors to generate the bending force. They are more energy-efficient compared to hydraulic press brakes, as they only consume power when actively bending. They also operate more quietly, which can be an advantage in noise-sensitive environments.
Best for high-precision, low-tonnage applications: These press brakes are well-suited for applications that require high precision and relatively low tonnage. They can achieve very accurate bends and are often used in industries such as electronics and medical device manufacturing.
Hand-operated, low-cost: Manual press brakes are the simplest and most affordable type of press brake. They are operated by hand, usually with a lever or a handle. The operator manually applies the force to bend the metal.
Suitable for small shops or simple bends: Manual press brakes are ideal for small workshops or for making simple, occasional bends. They don't require a lot of space or complex setup, and they can be a cost-effective solution for hobbyists or small-scale fabricators.
There are several different bending techniques used in press brake bending, each with its own characteristics and applications:
Metal doesn’t fully contact the die: In air bending, the metal sheet is placed on the die, and the punch descends to apply force. However, the metal does not fully contact the bottom of the die. Instead, it bends around the edges of the die, creating an air gap between the metal and the die surface.
Pros:
Flexible angles: Air bending allows for the creation of a wide range of bend angles using a single set of tooling. This is because the bend angle is controlled by the depth to which the punch descends, rather than the shape of the die.
Less force needed: Since the metal doesn't fully contact the die, air bending requires less force compared to other techniques. This makes it suitable for bending thin materials or materials that are sensitive to excessive force.
Cons:
Slight springback: As mentioned earlier, air bending is more prone to springback. The metal's natural tendency to return to its original shape after the force is removed can result in a slightly less accurate final bend angle.
Metal pressed fully into the die: In bottom bending, the punch presses the metal sheet all the way to the bottom of the die. The angle of the die determines the final bend angle of the metal.
Pros:
High precision: Bottom bending offers high precision, as the metal is forced to conform exactly to the shape of the die. This makes it suitable for applications where tight tolerances are required.
Cons:
More force required: Since the metal is fully pressed into the die, bottom bending requires more force than air bending. This may limit its use with certain materials or thinner gauges of metal.
High-pressure stamping for exact shapes: Coining is a high-pressure bending technique where the punch and die are designed to match the exact shape of the desired bend. The metal is subjected to intense pressure, causing it to deform and take on the precise shape of the die.
Pros:
No springback: Coining virtually eliminates springback, as the metal is fully deformed to the shape of the die. This results in extremely accurate and consistent bends.
Ultra-precise: It is the most precise bending technique, making it ideal for applications where the highest level of accuracy is required, such as in the aerospace or medical industries.
Cons:
High tonnage: Coining requires a significant amount of tonnage, as the high pressure needed to deform the metal requires a powerful press brake. This can limit its use in some shops with lower-capacity machines.
Tool wear: The high-pressure nature of coining can cause significant wear on the punch and die, requiring more frequent tool replacement or maintenance.
Uses a servo-adjusted die for precision: Three-point bending uses a specialized die system where the bottom tool's height is precisely controlled by a servo motor. The metal sheet is formed over the die's bend radii until it contacts the adjustable bottom.
Pros:
Highly accurate: Three-point bending can achieve very high accuracy, with bend angles that can be controlled to within a fraction of a degree. The servo-adjusted die allows for precise compensation of material variations and springback.
Minimal springback: The controlled nature of the bending process in three-point bending helps to minimize springback, resulting in more accurate bends.
Cons:
Expensive tooling: The specialized die system used in three-point bending can be expensive to purchase and maintain. This may make it less cost-effective for some applications, especially those with lower production volumes.
Rotating tools reduce surface marks: Rotary bending uses rotating tools instead of traditional stationary punches and dies. The metal sheet is fed between the rotating tools, which gradually bend the metal without leaving significant surface marks.
Best for delicate or aesthetic parts: This technique is particularly well-suited for bending delicate materials or parts where surface finish is crucial. The smooth rotation of the tools helps to prevent scratches or dents on the metal surface.
Bending metal back onto itself: Folding involves bending the metal back onto itself, creating a double layer. This technique is often used to reinforce edges or create a more robust structure.
Used for reinforced edges: In applications where added strength or rigidity is required, folding can be an effective solution. It can also be used to create decorative elements or to hide sharp edges.
The right tooling is crucial for achieving accurate and high-quality press brake bends. Let's explore some of the essential tooling components:
Types: There are various types of punches and dies available, each designed for specific applications. Some common types include:
V-dies: As mentioned earlier, V-dies are the most commonly used dies in press brake bending. They come in different V-widths, which determine the minimum bend radius.
Gooseneck: Gooseneck punches are useful for bending metal in tight spaces or around obstacles. Their unique shape allows for more flexibility in bending.
Acute-angle: Acute-angle punches and dies are designed for creating sharp bends, typically less than 90 degrees.
Material considerations: Punches and dies are usually made from tool steel, which offers high strength and wear resistance. In some cases, carbide inserts may be used for added durability, especially when working with hard or abrasive materials. The choice of material depends on factors such as the type of metal being bent, the frequency of use, and the desired lifespan of the tooling.
Ensures consistent bend positioning: The back gauge is responsible for accurately positioning the metal sheet for each bend. It ensures that the bends are in the correct location and that the distances between bends are consistent.
Manual vs. CNC-controlled: Manual back gauges are adjusted by hand, usually with the help of a scale or a measuring device. They are simple and cost-effective but may not offer the same level of precision as CNC-controlled back gauges. CNC-controlled back gauges are automated and can be programmed to position the sheet with extreme accuracy. They are ideal for applications where high precision and repeatability are required.
Compensates for machine deflection: When a press brake applies force to bend metal, the machine itself can deflect slightly. This deflection can result in inconsistent bends, especially over long lengths. Crowning systems are used to compensate for this deflection by adjusting the shape of the die or the ram.
Manual vs. automatic crowning: Manual crowning systems require the operator to manually adjust the crowning mechanism based on the length of the bend and the material being used. Automatic crowning systems, on the other hand, use sensors and computer controls to automatically adjust the crowning in real-time. Automatic crowning systems offer greater precision and ease of use, but they are also more expensive.
Even experienced fabricators can make mistakes when operating a press brake. Here are some common mistakes and how to fix them:
Causes: Over-bending can occur due to incorrect tonnage settings. If too much force is applied, the metal may be bent beyond the desired angle. Another cause could be poor calibration of the press brake, which can lead to inaccurate control of the bending process.
Fix: To fix over-bending, first, adjust the force settings on the press brake. Make sure to use the correct amount of tonnage for the material thickness and type. Additionally, verify the material specifications. Different metals have different properties, and using the wrong values for calculations can lead to over-bending. If the press brake is not properly calibrated, it should be recalibrated according to the manufacturer's instructions.
Using wrong punch/die for material thickness: Selecting the wrong punch or die for the material thickness is a common mistake. For example, using a die with a too-wide V-opening for a thin material can result in an inaccurate bend.
Fix: Always match the tooling to the job requirements. Before starting a bending job, carefully consider the material thickness, the desired bend radius, and the angle of the bend. Refer to the tooling manufacturer's guidelines to select the appropriate punch and die. If possible, test the tooling on a sample piece of the same material and thickness to ensure it produces the desired results.
Scratches, misalignment: Improper handling of the metal sheet can lead to scratches, dents, or misalignment during the bending process. This can affect the quality of the final product and may require rework or scrap the part.
Fix: To prevent material handling errors, use proper clamping techniques to secure the metal sheet firmly in place. Ensure that the work surfaces are clean and free of debris that could scratch the metal. When loading and unloading the sheet, handle it with care to avoid accidental damage. Using protective pads or gloves can also help prevent scratches and keep the material in good condition.
Safety should always be a top priority when operating a press brake. Here are some essential safety tips to follow:
Gloves: Wear gloves to protect your hands from cuts, abrasions, and heat. Choose gloves that are appropriate for the type of work being done. For example, leather gloves offer good protection against cuts, while heat-resistant gloves are necessary when working with hot metals.
Safety glasses: Always wear safety glasses to protect your eyes from flying debris, sparks, or metal shavings. In some cases, face shields may be required for additional protection, especially when working with high-pressure or high-speed operations.
Ear protection: If the press brake operation is noisy, wear earplugs or earmuffs to protect your hearing. Prolonged exposure to loud noise can cause permanent hearing damage.
Lubrication: Regularly lubricate the moving parts of the press brake to ensure smooth operation and reduce wear and tear. Follow the manufacturer's recommendations for lubrication intervals and types of lubricants to use.
Hydraulic checks: If you're using a hydraulic press brake, regularly check the hydraulic fluid level and condition. Low fluid levels or contaminated fluid can lead to poor performance or even machine failure. Replace the fluid as needed and inspect the hydraulic system for leaks.
Familiarize yourself with the location of the emergency stop button on the press brake and ensure that it is in good working order. In case of an emergency, such as a malfunction or a safety hazard, press the emergency stop button immediately to halt the machine.
Regularly test the emergency stop function to make sure it works properly. Train all operators on how to use the emergency stop button and what to do in case of an emergency.
Ensure that all operators are properly trained and certified to use the press brake. Training should include an understanding of the machine's components, how to operate it safely, and how to troubleshoot common problems.
Provide ongoing training to keep operators up-to-date with the latest safety standards and best practices. This can help reduce the risk of accidents and improve the overall quality of the bending operations.
Achieving accurate bends is crucial in press brake bending. Several factors can affect the accuracy of the bend:
Different materials have different properties, such as tensile strength, yield strength, and ductility. These properties affect how the material responds to the bending force. For example, harder materials like stainless steel require more force to bend and may be more prone to springback, while softer materials like aluminum are easier to bend but may be more susceptible to scratches or deformation.
The thickness of the material also plays a significant role. Thicker materials require more force to bend and may have a larger bend radius. Inaccuracies in measuring the material thickness can lead to incorrect force calculations and inaccurate bends.
The grain direction of the metal refers to the orientation of the metal's crystalline structure. Bending against the grain direction can cause the metal to crack or split, while bending with the grain direction is easier and results in a smoother bend. It's important to consider the grain direction when planning the bending process to ensure the best results.
Dull or worn tools can lead to inaccurate bends and poor surface quality. Punches and dies that are not sharp can cause the metal to slip or deform improperly, while worn tools may have dimensions that are no longer accurate. Regularly inspect the tools for wear and tear and replace them when necessary. Keeping the tools sharp and in good condition is essential for maintaining bending accuracy.
A poorly calibrated press brake can result in inconsistent bends and inaccurate angles. Regularly calibrate the machine to ensure that the position of the punch, die, and back gauge are accurate. Calibration should be done according to the manufacturer's instructions and may involve checking the alignment, force settings, and stroke length of the machine.
To get the most out of your press brake and improve efficiency, consider the following tips:
As mentioned earlier, regular calibration is essential for maintaining bending accuracy. Set up a schedule for calibrating the press brake, and stick to it. Calibrating the machine regularly can help identify and correct any issues before they lead to poor quality bends or machine failure.
Sharp tools are essential for achieving accurate bends and a good surface finish. Regularly clean the tools to remove metal debris, oil, and other contaminants that can affect their performance. Inspect the tools for wear and tear, and sharpen or replace them as needed. A well-maintained set of tools will last longer and produce better results.
Each press brake has a maximum tonnage capacity, which is the amount of force it can safely apply. Overloading the machine can damage the press brake, cause inaccurate bends, and pose a safety hazard. Always check the material thickness and the required force before starting a bending job, and make sure it does not exceed the machine's capacity. If you're unsure, consult the manufacturer's specifications or a qualified technician.
If you're using a CNC press brake, keeping the software up-to-date is essential for optimal performance. Updated software often includes new features, improved accuracy, and better compatibility with different materials and tooling. It can also help reduce programming time and improve the efficiency of the bending process.
Understanding the costs associated with press brake bending is important for budgeting and making informed decisions about equipment and processes. Here are the main cost components:
The cost of a press brake can vary widely depending on the type, size, and features. Hydraulic press brakes are generally more expensive than mechanical or manual press brakes, while CNC press brakes are the most expensive due to their advanced technology. When considering the initial investment, it's important to factor in your production needs, the materials you'll be working with, and the level of precision required.
Punches, dies, and other tooling components can be a significant expense. High-quality tooling made from durable materials like tool steel or carbide may cost more upfront, but it will last longer and provide better performance. Cheaper tooling may be more affordable initially, but it may wear out quickly, leading to more frequent replacements and higher long-term costs.
Regular maintenance is necessary to keep the press brake in good working order. This includes lubrication, hydraulic fluid changes, and tool inspections. Operational expenses include electricity, hydraulic fluid, and other consumables. These costs can add up over time, so it's important to factor them into your budget.
Labor costs include the wages of the operators and technicians who work with the press brake. Training costs are also important, especially if you're using a CNC press brake, which requires skilled operators. Investing in training can improve the efficiency and quality of the bending operations, ultimately saving money in the long run.
While press brake bending is a versatile and widely used technique, there are alternatives that may be more suitable for certain applications:
For long, continuous bends: Roll forming is a process that uses a series of rollers to gradually bend a metal strip into a continuous shape. It's ideal for producing long, uniform parts with consistent bends, such as channels, angles, or roofing panels. Roll forming is highly efficient for high-volume production but requires custom tooling, which can be expensive.
For cylindrical parts: Tube bending is used to bend pipes or tubes into various shapes, such as curves or loops. It's commonly used in the automotive, aerospace, and plumbing industries. Tube bending can be done using specialized equipment, such as a tube bender, which can create precise bends without damaging the tube's structure.
High-volume production: Stamping is a process that uses a press and a die to form metal into a specific shape. It's typically used for high-volume production of parts, as it can produce parts quickly and efficiently. Stamping is commonly used in the automotive industry for producing body panels and other components. However, stamping requires expensive tooling and is not as flexible as press brake bending for low-volume or custom applications.
Q: What is the difference between air bending and bottom bending?
A: Air bending allows the metal to bend over the die without fully contacting it, offering flexibility in angles with less force. Bottom bending presses the metal fully into the die for higher precision but requires more force and may cause more springback if not compensated.
Q: What causes springback, and how can I reduce it?
A: Springback occurs because metal rebounds slightly after bending. To reduce it, overbend by 1–3 degrees (based on material testing), use coining for high-precision bends, or choose materials with lower yield strength. CNC press brakes can automatically compensate for springback using pre-programmed offsets.
Q: How often should I calibrate my press brake?
A: Calibrate at least once every 6 months, or more frequently if you notice inconsistent bends, unusual noise, or tooling wear. High-production environments may require quarterly calibration to maintain accuracy.
Q: Can I bend thick metal with a standard press brake?
A: Most standard press brakes handle materials up to 50mm thick, but thicker metals require higher-tonnage machines (e.g., hydraulic press brakes with 100+ tons of force). Always check your machine’s specifications and use appropriate tooling for thick materials to avoid damage.
Q: What safety gear is mandatory for press brake operators?
A: Operators must wear safety glasses, gloves, and closed-toe shoes. In noisy environments, ear protection is essential. For heavy-duty operations, consider aprons or cut-resistant sleeves to prevent injuries from sharp metal edges.
Q: How do I choose between a hydraulic and CNC press brake?
A: Hydraulic press brakes are ideal for heavy-duty, high-force applications (e.g., thick steel), while CNC press brakes offer precision and automation for complex, high-tolerance parts. Choose CNC if you need repeatability for mass production or intricate bends; opt for hydraulic for raw power and versatility.
Q: What’s the best way to maintain press brake tooling?
A: Clean tools after each use to remove debris and lubricate moving parts regularly. Inspect for wear (e.g., cracks, dull edges) and replace damaged tools immediately. Store tools in a dry, organized space to prevent rust and misalignment.
Q: Can press brake bending be used for non-ferrous metals like aluminum?
A: Yes! Press brake bending works well with non-ferrous metals like aluminum, copper, and brass. Adjust tooling (e.g., use rounded punches to prevent scratching) and reduce bending force to accommodate these softer materials.
